Description

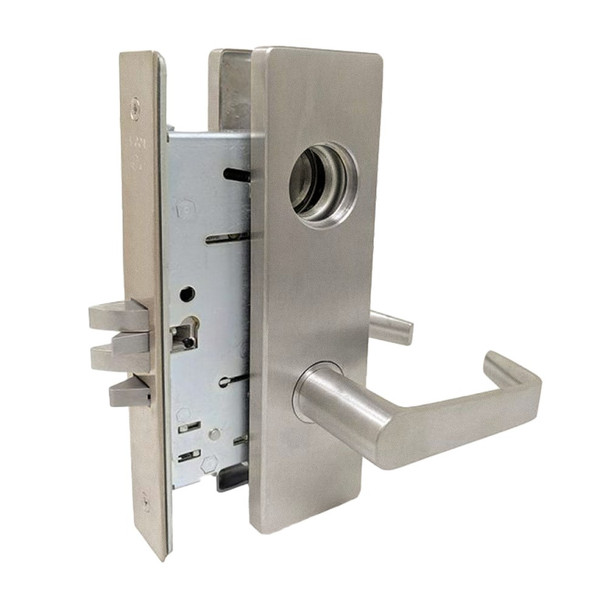

The Falcon MA411L DN 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable ANSI/BHMA Series 1000 lock features a stainless steel latch and deadbolt with saw-resistant rollers, cold-formed steel case, and interchangeable core (SFIC) design for quick re-keying without removing the lock body.
The MA411L fits standard 1-3/8" to 2-1/2" door thickness with 2-3/4" backset and accommodates 1-3/8" to 2-1/2" doors. Right-hand handing is standard; left-hand and field-reversible options are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations (12/24 VDC), and expert installation guidance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA411L DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin interchangeable core
- Keyways: "G" standard cylinder, "A" interchangeable core
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: 156.13 Series 1000
- UL: 3-hour A label
- Electrified: Available 12/24 VDC
- Supplied: Two nickel silver keys standard
