Description

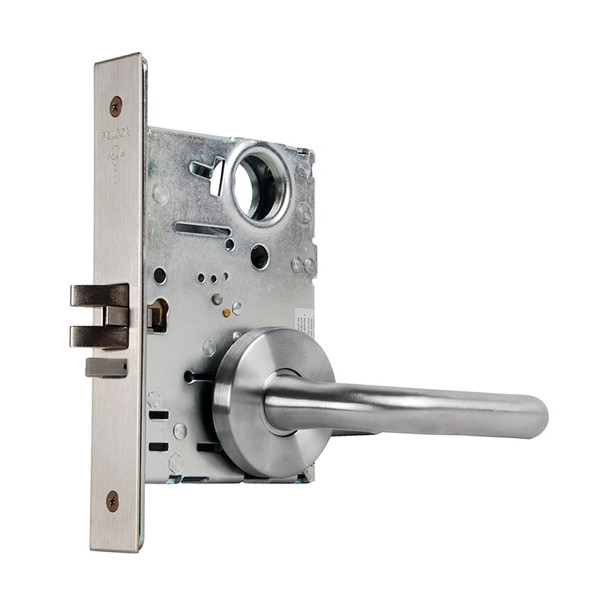

The Falcon MA411L SG mortise lock is a heavy-duty commercial lock designed for offices, hospitals, and educational facilities. Built to withstand constant use, this ANSI/BHMA Series 1000 lock combines security with reliability, featuring a stainless steel latch bolt, anti-friction mechanism, and a 1-inch throw dead bolt with saw-resistant rollers.
This lock accepts interchangeable cores (SFIC compatible) for convenient re-keying and fits standard door thicknesses of 1 3/8" to 2 1/2" with a 2 3/4" backset. Installation is straightforward with through-bolted trim inserts that ensure proper alignment. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, finishes, and electrified configurations.
Specifications
- Door Thickness: 1 3/8" to 2 1/2"
- Backset: 2 3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplate: 1 1/4" x 8" brass or stainless steel, adjustable for bevel
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13 Series 1000
- UL: 3 hour A label
