Description

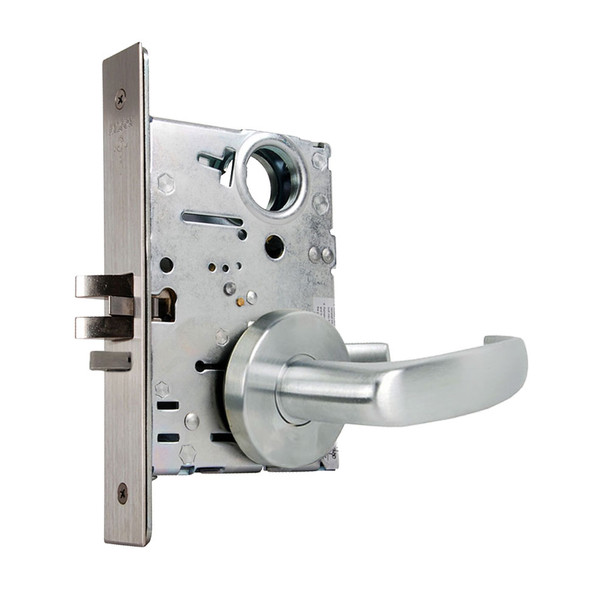

The Falcon MA411L QG 630 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This durable lock combines security with reliability, featuring a two-piece stainless steel latch bolt, 1-inch throw deadbolt with saw-resistant rollers, and cold-formed steel construction rated ANSI/BHMA Series 1000 with 3-hour fire rating.
The MA411L accommodates standard door thicknesses from 1-3/8 to 2-1/2 inches with 2-3/4 inch backset. It features an interchangeable core (SFIC) for quick re-keying and is compatible with other manufacturers' SFIC products. Supplied with solid brass cylinder, two nickel silver keys, and available in 12 or 24 VDC electrified functions. Contact E.D. Locks' experts at sales@edlocks.com or 1-877-207-6067 for keying options and installation guidance.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw with 13/16 inch diameter hardened steel rollers
- Faceplate: 1-1/4 inch x 8 inch brass or stainless steel
- Handing: Right hand standard; left hand reversible in field
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
