Description

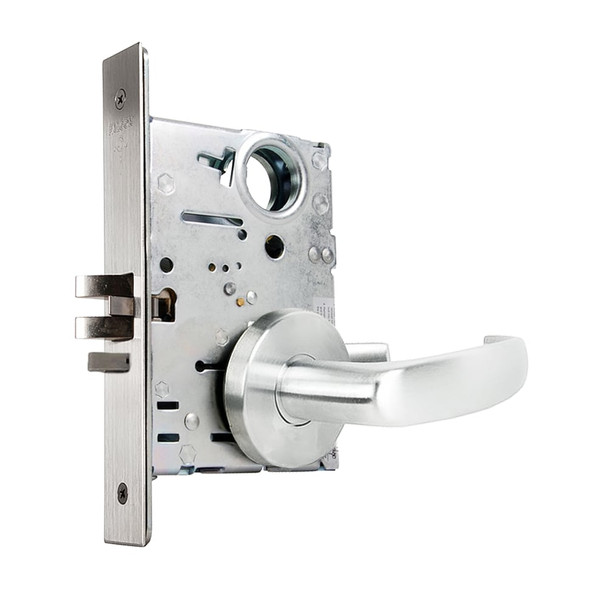

The Falcon MA411L QG 625 is a commercial mortise lock engineered for high-traffic offices, hospitals, educational facilities, and similar institutions. This durable lock combines security with dependability, featuring an interchangeable core (SFIC-compatible) for quick re-keying and easy maintenance without sacrificing performance or reliability.
Fits standard doors 1 3/8" to 2 1/2" thick with 2 3/4" backset and includes two nickel silver keys. Available in right or left hand, reversible in the field. As an authorized Falcon dealer, E.D. Locks provides expert configuration assistance and competitive pricing. Contact sales@edlocks.com or 1-877-207-6067 for specification details, keying options, and project support.
Specifications
- Door thickness: 1 3/8" to 2 1/2"
- Backset: 2 3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway standard (A keyway on interchangeable core)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1 1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
