Description

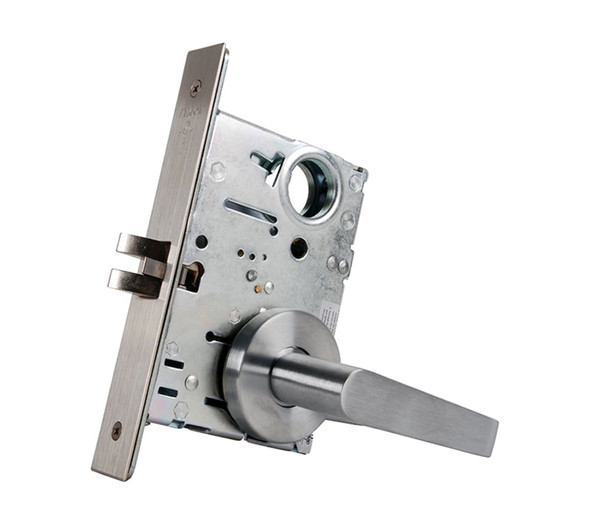

The Falcon MA431L is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This Series 1000 lock combines security with durability to withstand constant use, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers ideal for high-traffic applications.
The MA431L accepts standard or interchangeable core (SFIC) cylinders for flexible re-keying, accommodates door thicknesses from 1-3/8" to 2-1/2", and is reversible in the field. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification assistance and fast shipping on orders over $450.
Specifications
- Brand: Falcon
- Model: MA431L DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin I/C available
- Keyway: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Handing: Right hand standard; left hand optional, reversible
- ANSI/BHMA: Series 1000, meets ANSI/BHMA 156.13
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
