Description

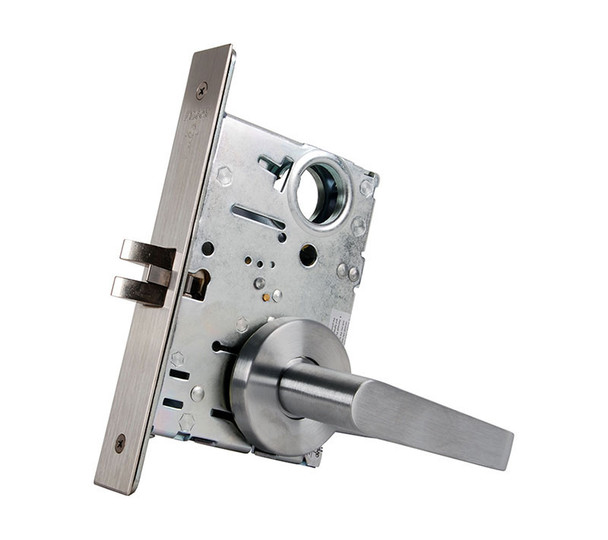

The Falcon MA431L DG 613 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. It combines reliable security with interchangeable core technology for quick re-keying, making it ideal for high-traffic installations that demand dependable performance without compromise.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features SFIC-compatible interchangeable cores. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying options, and finish selection. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support and to discuss your project requirements.
Specifications
- Brand: Falcon
- Model: MA431L DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
