Description

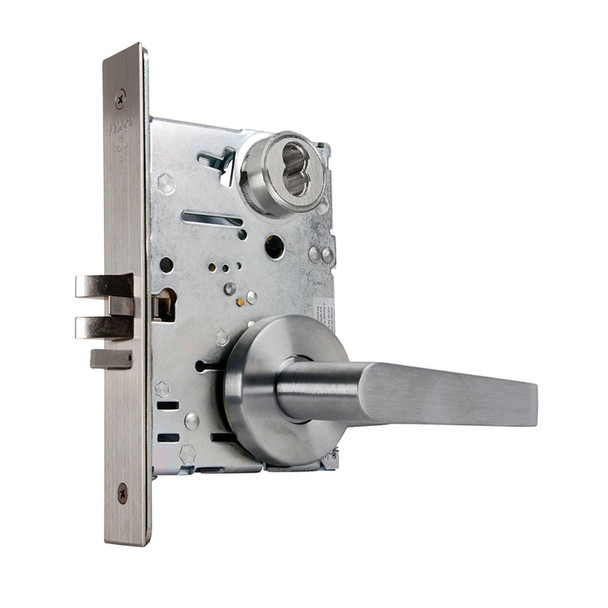

The Falcon MA441B DG 626 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying without removing the lock from the door, while the two-piece stainless steel latch and anti-friction bolt withstand constant use reliably.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features SFIC-compatible cylinders that work with products from other manufacturers. Right-hand handing is standard, with left-hand and field-reversible options available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and compatibility confirmation before purchase.
Specifications
- Brand: Falcon
- Model: MA441B DG 626
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinder: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3 hour A label; ANSI A115.1
- Furnished with: Two nickel silver keys standard
