Description

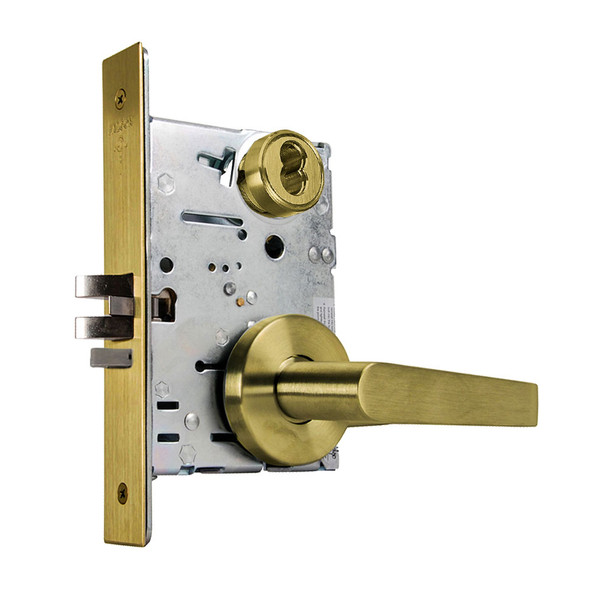

The Falcon MA441B DG 606 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This dependable lock combines security with durability, featuring an interchangeable core for fast re-keying and compatibility with SFIC products from other manufacturers, solving costly downtime during key changes.
The MA441B fits standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and accommodates both right and left-hand handing, reversible in the field. Backed by Allegion's reputation and meeting ANSI/BHMA 156.13 Series 1000 and UL 3-hour fire ratings, authorized dealers at E.D. Locks provide expert guidance on keying, electrified options, and field installation. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA441B DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case Material: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard; A keyway on interchangeable core
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
