Description

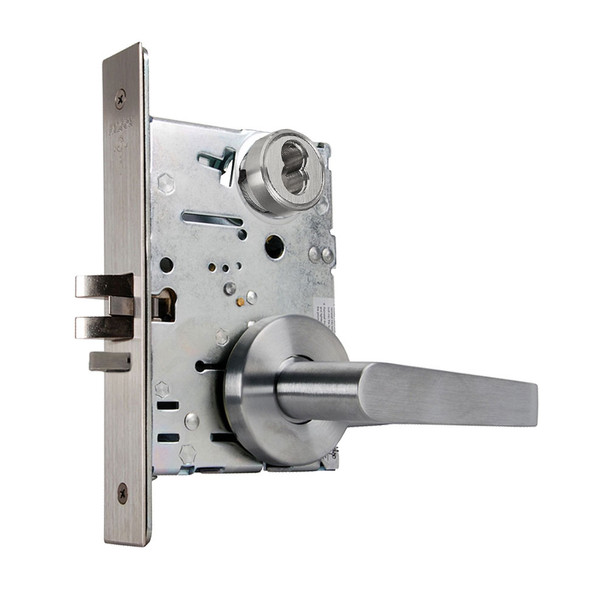

The Falcon MA441B mortise lock is a high-performance commercial security solution designed for offices, hospitals, and educational facilities. Built to withstand constant use, this ANSI/BHMA Series 1000 rated lock combines durability with affordability, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers for reliable security.
Compatible with SFIC interchangeable cores for quick re-keying and field reversibility between left and right hand configurations. Accommodates door thicknesses from 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset. As an authorized Falcon dealer, E.D. Locks provides expert support and keying assistance. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility verification and installation guidance.
Specifications
- Brand: Falcon
- Model: MA441B DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G standard (standard cylinder); A standard (interchangeable core)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
