Description

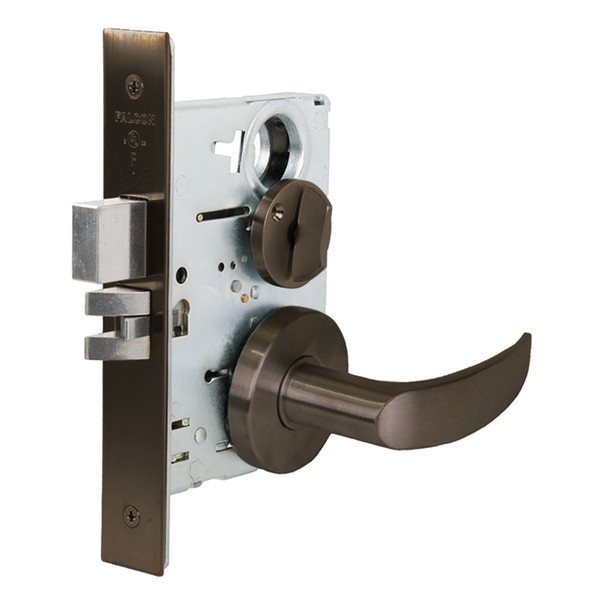

The Falcon MA521B AG 613 is a commercial mortise lock designed for offices, hospitals, education facilities, and high-traffic environments. This heavy-duty lock combines security with durability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for easy re-keying without removing the lock from the door.
The MA Series accommodates door thickness from 1-3/8 inch to 2-1/2 inch with a 2-3/4 inch backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. It is compatible with SFIC products and available in multiple finishes and electrified options. Contact E.D. Locks, an authorized Falcon dealer, at 1-877-207-6067 or sales@edlocks.com for expert guidance on configuration and installation.
Specifications
- Brand: Falcon
- Model: MA521B AG 613
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel, adjustable
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keys: Two nickel silver keys standard
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
