Description

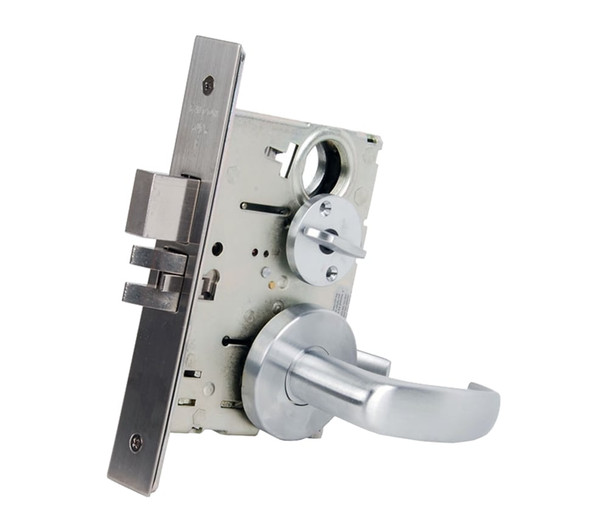

The Falcon MA521B QG 630 is a commercial mortise lock built for high-traffic office, hospital, and education environments. It combines security with durability, featuring a two-piece stainless steel latch bolt, 1-inch throw dead bolt with saw-resistant rollers, and heavy-duty through-bolted trim inserts. The interchangeable core design supports quick re-keying without removing the lock body.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. It is compatible with SFIC products and available in right or left hand configurations. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and keying support.
Specifications
- Brand: Falcon
- Model: MA521B QG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard cylinder or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Includes: Two nickel silver keys
