Description

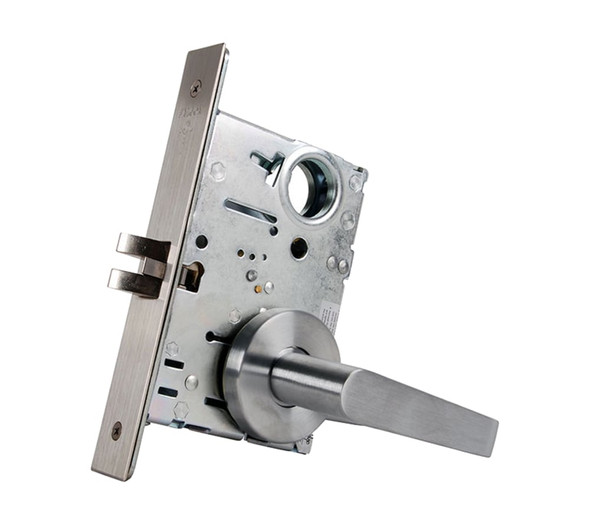

The Falcon MA521L AN 630 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and other high-traffic environments. This durable lock combines security with reliability, featuring a two-piece stainless steel latch bolt and 1-inch throw dead bolt with saw-resistant rollers. The interchangeable core design enables fast re-keying without removing the lock from the door.
Compatible with standard 1-3/8" to 2-1/2" door thicknesses and SFIC products from other manufacturers, this Allegion-backed lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keying, and electrified options.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
