Description

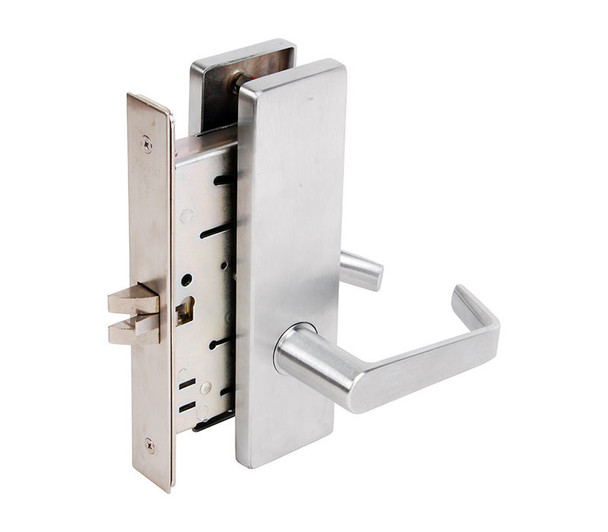

The Falcon MA521L DN 630 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Its two-piece stainless steel latch, one-inch dead bolt with saw-resistant rollers, and cold-formed steel case deliver dependable security and durability without premium pricing. The interchangeable core design enables quick field re-keying and works with SFIC products from other manufacturers.
This lock accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Available in 5, 6, or 7-pin cylinders with G or A keyways, plus optional 12 or 24 VDC electrified functions. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, handing configuration, and expert guidance on your project.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard (standard cylinder); A keyway standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified Functions: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
