Description

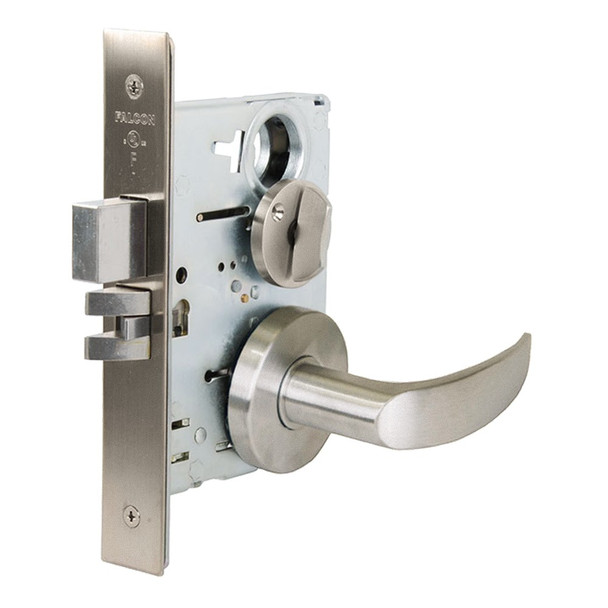

The Falcon MA521L AG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable lock combines security with dependability, featuring an interchangeable core for fast re-keying and SFIC compatibility. Built to withstand constant use, it delivers trusted performance backed by Allegion's reputation.
The MA521L accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset. It ships with two nickel silver keys and is reversible in the field for right or left-hand installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing, and electrified options to match your project needs.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
