Description

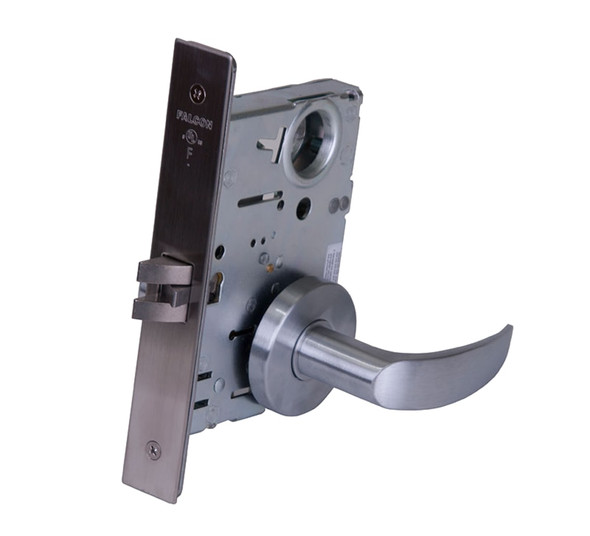

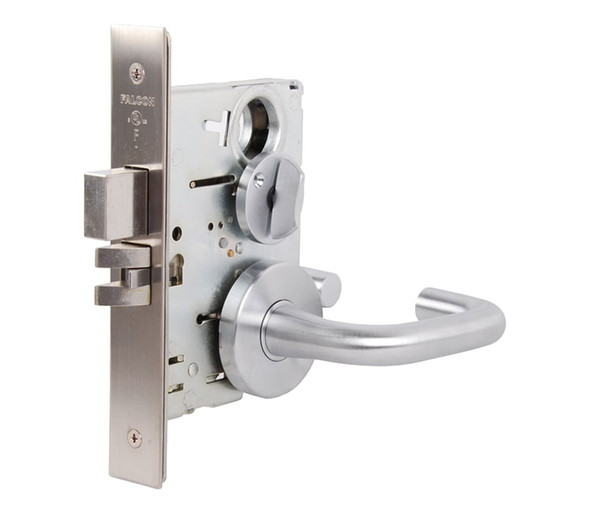

The Falcon MA531B mortise lock is a high-performance commercial lock designed for offices, hospitals, educational facilities, and other demanding environments. Its heavy-duty construction delivers dependable security and withstands constant use without fail. The interchangeable core allows quick re-keying in the field and is compatible with SFIC products from other manufacturers.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. It features a 1" throw deadbolt with saw-resistant rollers, stainless steel latch bolt, and solid brass cylinder. The MA531B meets ANSI/BHMA Series 1000 standards and carries a 3-hour UL A label. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with hardened steel roller guards
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G (standard cylinder), A (I/C cylinder)
- Handing: Right hand standard; left hand optional, reversible in field
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Electrified: 12 or 24 VDC available
