Description

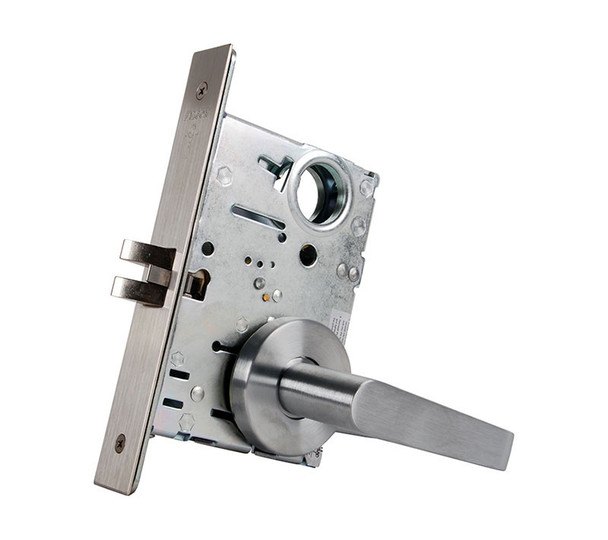

The Falcon MA531B DG 606 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. It delivers dependable security with an interchangeable core for quick re-keying, eliminating costly downtime. Built with cold-formed steel and hardened components, this lock withstands constant use without fail.
The MA531B accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and features a 1" stainless steel deadbolt with saw-resistant rollers. It is ANSI/BHMA Series 1000 certified and carries a 3-hour UL label. Contact E.D. Locks, an authorized Falcon dealer, at sales@edlocks.com or 1-877-207-6067 for expert keying, finish, and compatibility guidance.
Specifications
- Brand: Falcon
- Model: MA531B DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin on interchangeable core
- Keys: Two nickel silver keys standard
- Keyway: G keyway on standard cylinder; A keyway on I/C cylinder
- Handing: Right hand standard; left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000; UL 3 hour A label
