Description

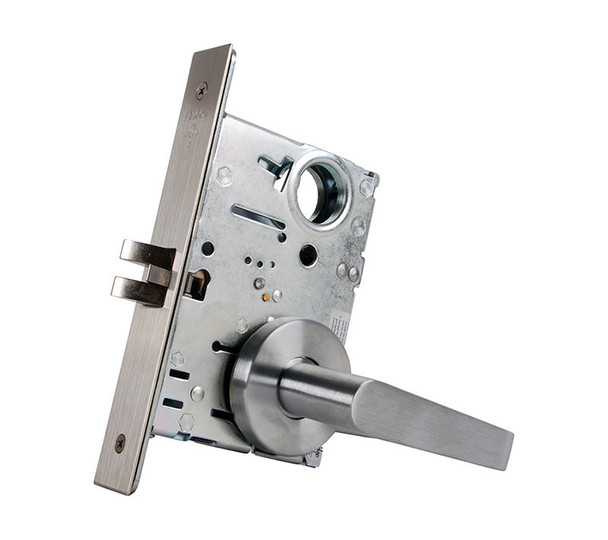

The Falcon MA531B is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables fast re-keying without removing the lock body, while the two-piece stainless steel latch and saw-resistant roller deadbolt deliver dependable security through years of constant use.
The MA531B accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and compatibility. Contact sales@edlocks.com or 1-877-207-6067 for specification details and fast shipping on orders over $450.
Specifications
- Brand: Falcon
- Model: MA531B DG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified Functions: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Keys Furnished: Two nickel silver keys standard
