Description

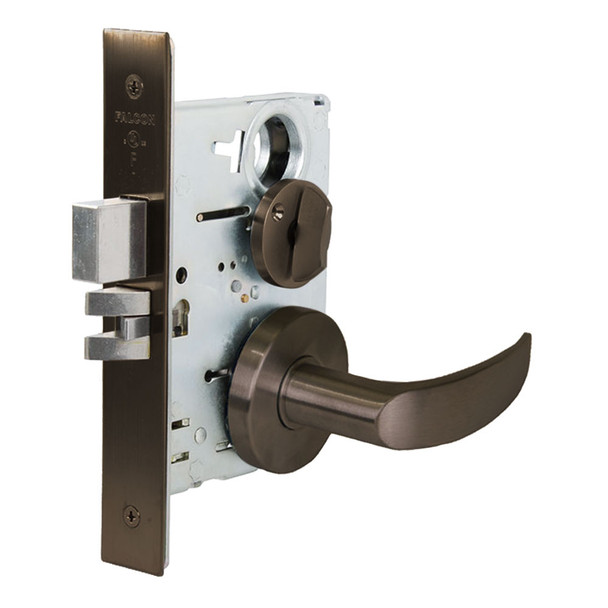

The Falcon MA541B AG 613 is a high-performance mortise lock designed for offices, hospitals, schools, and commercial buildings that demand durability and security. Built to withstand constant use, this heavy-duty lock features a two-piece stainless steel latch bolt, a 1-inch deadbolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock from the door.
The MA541B accommodates door thicknesses from 1-3/8" to 2-1/2" and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Compatible with SFIC products, it ships with two nickel silver keys and reversible handing. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and authorized dealer support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6, or 7-pin available
- Standard Keyway: "G" on standard cylinder, "A" on I.C. cylinder
- Electrified Functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
