Description

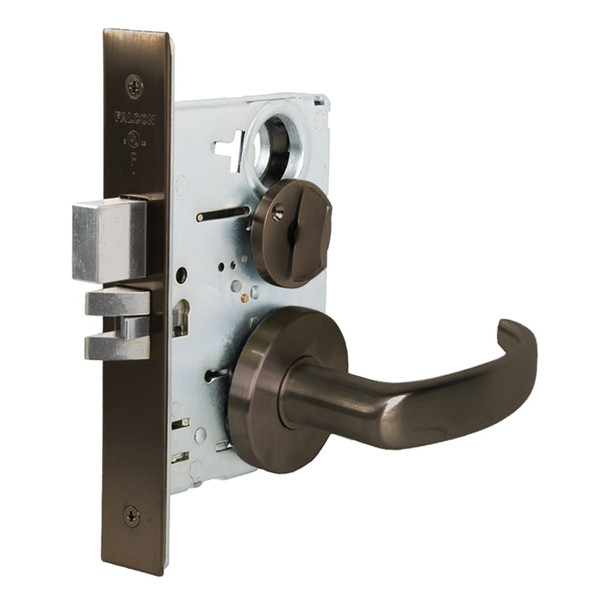

The Falcon MA541B QG 613 is a commercial mortise lock engineered for offices, hospitals, and educational facilities requiring reliable security and durability. This ANSI/BHMA Series 1000 lock features a mechanical anti-friction latch bolt and 1-inch throw deadbolt with saw-resistant rollers, plus an interchangeable core for quick re-keying without removing the lock from the door.
Fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. The cold-formed steel case with zinc dichromate plating is built to withstand constant use. Compatible with SFIC products and reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert support: contact sales@edlocks.com or call 1-877-207-6067 for keying options, finish selection, or electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway standard I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
