Description

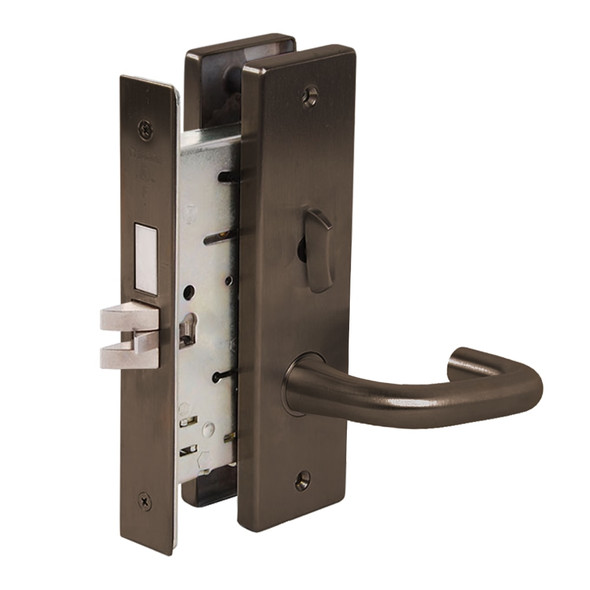

The Falcon MA541B mortise lock is a high-performance commercial lock engineered for offices, hospitals, and educational facilities that demand reliability and security. It features a two-piece stainless steel latch bolt with 3/4" projection and a 1" throw dead bolt with saw-resistant rollers, built to withstand constant use without fail.
This lock accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and offers interchangeable core (I/C) capability for quick re-keying. It meets ANSI/BHMA Series 1000 and carries a 3-hour UL label. As an authorized Falcon dealer, E.D. Locks provides expert support to help you select the right keying, handing, and finish. Contact sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw stainless steel with 13/16" diameter hardened steel rollers
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin I/C
- Keyways: "G" standard cylinder, "A" standard I/C
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
