Description

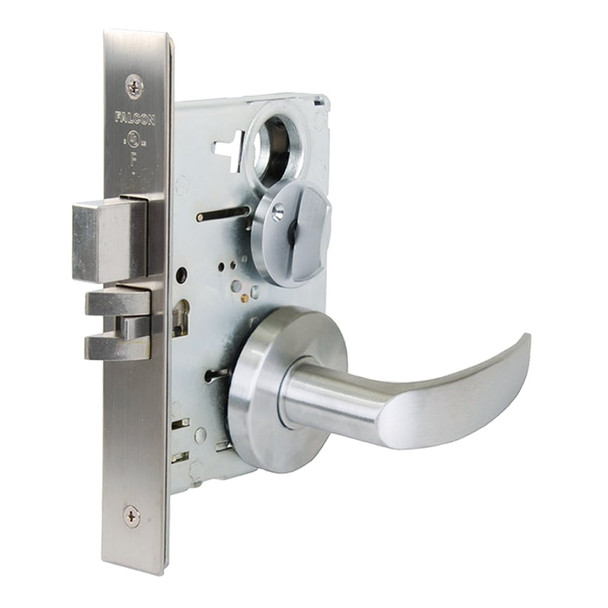

The Falcon MA541B is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. It combines high security with dependable performance, featuring a mechanical anti-friction latch bolt, 1 inch throw deadbolt with saw-resistant rollers, and an interchangeable core (SFIC) for convenient re-keying without removing the lock body.
This lock accommodates standard door thicknesses from 1 3/8 inches to 2 1/2 inches and meets ANSI/BHMA 156.13 Series 1000 standards with a 3-hour UL A label rating. It is reversible in the field for either hand installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified configurations, and installation support. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical assistance.
Specifications
- Brand: Falcon
- Model: MA541B AG 626
- Door Thickness: 1 3/8 inches to 2 1/2 inches
- Backset: 2 3/4 inches
- Case: Cold formed steel, zinc dichromate plated, 0.090 inches thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1 1/4 inches x 8 inches, brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6 or 7-pin available on standard cylinder; 6 or 7-pin on interchangeable core
- Keyways: G keyway standard on standard cylinder, A keyway standard on I/C cylinder
- Handing: Right hand standard; left hand optional; reversible in field
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: Available in 12 or 24 VDC
- Strike: Brass or stainless steel, meets ANSI A115.1
