Description

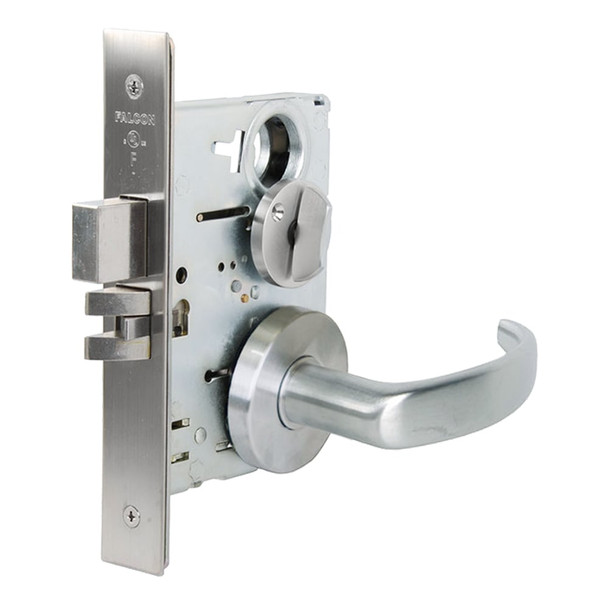

The Falcon MA541B QG 626 is a commercial mortise lock designed for offices, hospitals, education facilities, and other high-traffic environments. This heavy-duty lock combines security with reliability, featuring an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers, solving the challenge of managing keys across multiple doors and locations.
The MA541B accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour ratings for maximum security assurance. For expert guidance on handing options, keying configurations, and electrified function availability, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541B QG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyway: G (standard cylinder), A (I/C cylinder)
- Handing: Right hand standard, left hand optional, reversible
- Electrified Functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
