Description

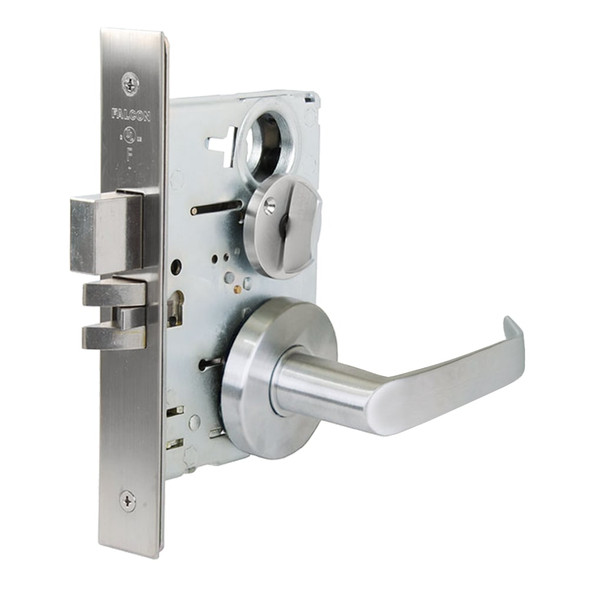

The Falcon MA541B is a heavy-duty commercial mortise lock designed for offices, hospitals, schools, and other high-traffic facilities. Built to withstand constant use, this Series 1000 lock combines security with reliability. Its interchangeable core (SFIC-compatible) enables quick re-keying without removing the lock body, saving time and labor on facility maintenance.
This mortise lock accommodates doors 1-3/8" to 2-1/2" thick with a fixed 2-3/4" backset and is available in multiple finishes and pin configurations. Falcon locks are backed by Allegion's reputation for quality. Need help selecting the right keying or finish? Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Brand: Falcon
- Model: MA541B DG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: "G" keyway standard cylinder, "A" keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Voltage: 12 or 24 VDC electrified options available
- ANSI/BHMA: Series 1000, 156.13 compliant
- UL Rating: 3 hour A label
- Handing: Right hand standard, left hand optional, field reversible
- Includes: Two nickel silver keys
