Description

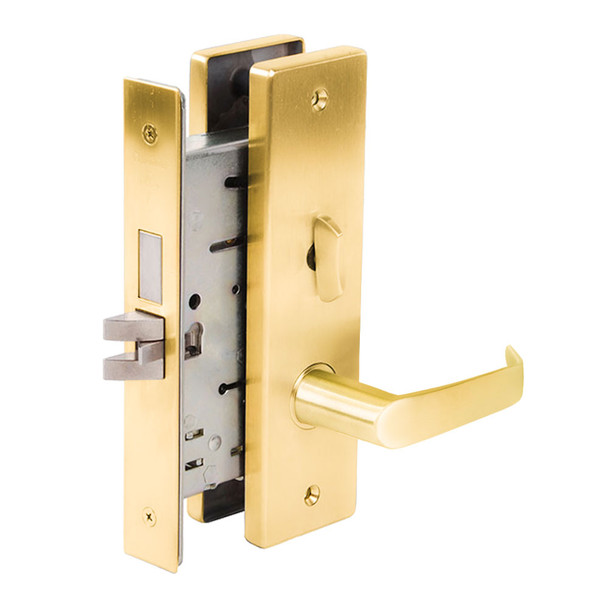

The Falcon MA541B DN 605 is a heavy-duty mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick field re-keying, while the two-piece stainless steel latch and saw-resistant roller deadbolt deliver dependable security and durability without compromise.
This lock accommodates standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour requirements. Backed by Allegion and sold through E.D. Locks as an authorized dealer, you'll receive expert support and product guidance at sales@edlocks.com or 1-877-207-6067 to ensure proper specification and installation.
Specifications
- Brand: Falcon
- Model: MA541B DN 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified: Available 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible
