Description

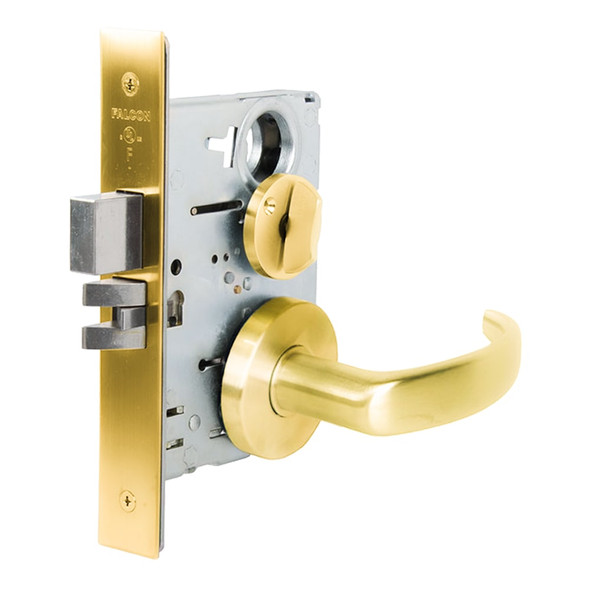

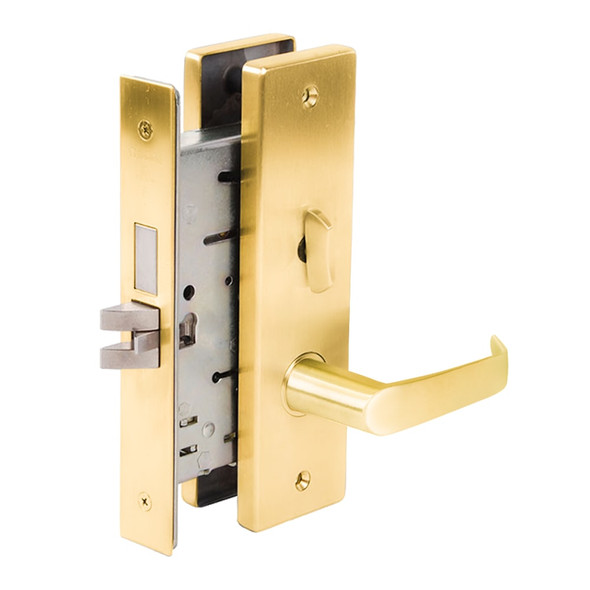

The Falcon MA541B mortise lock delivers reliable security for commercial environments including offices, hospitals, and educational facilities. This heavy-duty lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers, engineered to withstand constant daily use without compromise.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" with 2-3/4" backset, this lock accepts interchangeable cores (SFIC) for simple field re-keying. It meets ANSI/BHMA 156.13 Series 1000 and carries a UL 3-hour A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying assistance and compatibility verification.
Specifications
- Brand: Falcon
- Model: MA541B AN 605
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 5/6/7-pin standard options
- Keyway: G keyway standard (A keyway with I/C cylinder)
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
