Description

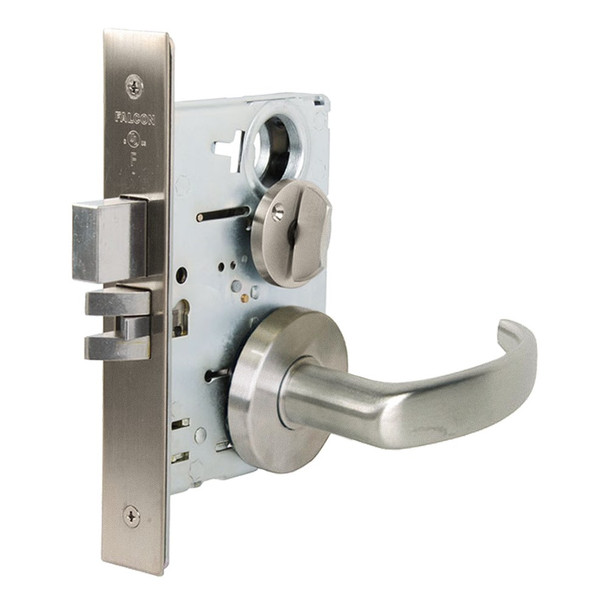

The Falcon MA541B QG 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a mechanical anti-friction latch bolt, 1-inch throw deadbolt with saw-resistant rollers, and cold-formed steel construction built to withstand constant use without failure.
The MA541B accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and includes an interchangeable core (SFIC-compatible) for quick field re-keying. Available in 12 or 24 VDC electrified functions. As an authorized Falcon dealer, E.D. Locks offers expert specification support and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or to discuss your project needs.
Specifications
- Brand: Falcon
- Model: MA541B QG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel, mechanical anti-friction
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 6 or 7-pin interchangeable core
- Keyway: G keyway (standard cylinder), A keyway (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard, left hand reversible in field
- Electrified Options: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
