Description

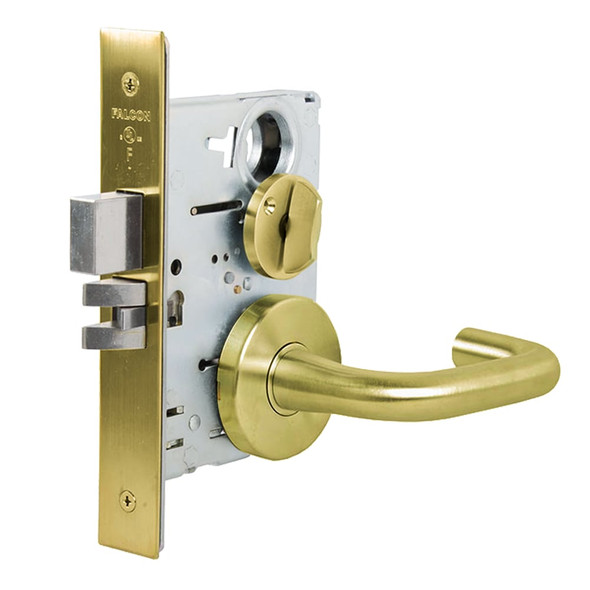

The Falcon MA541L mortise lock is a high-performance commercial lock built for offices, hospitals, and educational facilities. It combines security with durability, featuring a two-piece stainless steel latch bolt and a 1-inch throw deadbolt with saw-resistant rollers. The interchangeable core design enables quick re-keying without removing the lock from the door.
This lock accommodates standard door thicknesses from 1-3/8 inches to 2-1/2 inches with a 2-3/4 inch backset and meets ANSI/BHMA 156.13 Series 1000 standards. It is compatible with SFIC cylinders from other manufacturers and available in electrified versions. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and installation support from an authorized Allegion dealer.
Specifications
- Brand: Falcon
- Model: MA541L AN 606
- Door Thickness: 1-3/8 inches to 2-1/2 inches
- Backset: 2-3/4 inches
- Case: Cold formed steel, zinc dichromate plated, 0.090 inches thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel, adjustable for bevel
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
