Description

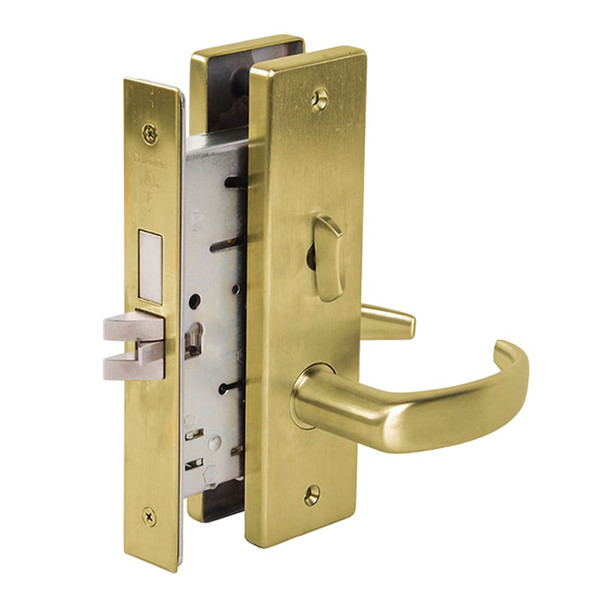

The Falcon MA541L QN 606 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock from the door.
The MA541L fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and is compatible with SFIC products from other manufacturers. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying options, cylinder configurations, and electrified variants. Contact sales@edlocks.com or call 1-877-207-6067 for technical assistance and competitive pricing.
Specifications
- Brand: Falcon
- Model: MA541L QN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, stainless steel
- Dead Bolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinder Options: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Handing: Right hand standard; left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
- Keys Furnished: Two nickel silver keys standard
