Description

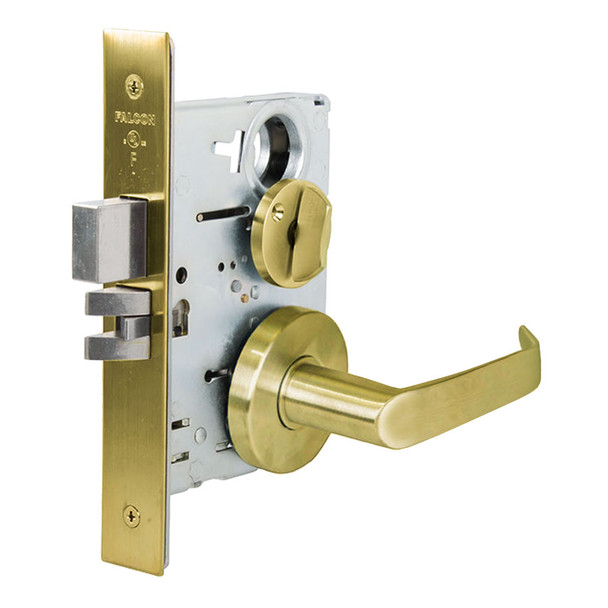

The Falcon MA541L is a commercial-grade mortise lock engineered for high-traffic office, hospital, education, and institutional environments. Its two-piece stainless steel latch and 1-inch deadbolt with saw-resistant rollers deliver reliable security and durability through constant daily use without fail.
This lock accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and features an interchangeable core (SFIC-compatible) for easy re-keying. ANSI/BHMA Series 1000 certified and UL 3-hour rated, it meets institutional security standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying, handing, and electrified options guidance.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin I/C available
- Handing: Right hand standard; left hand and field reversible
- Finish options: Multiple finishes per Falcon chart
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
