Description

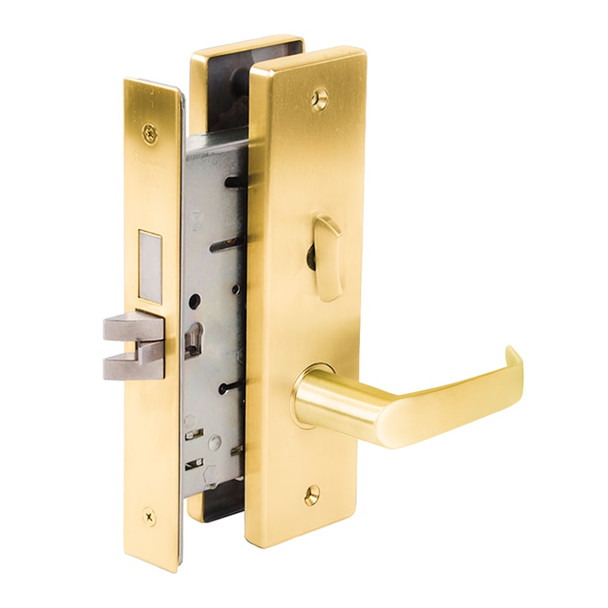

The Falcon MA541L DN 605 is a commercial mortise lock built for high-traffic office, hospital, and education environments. This dependable lock combines security with durability, featuring an interchangeable core (SFIC compatible) for quick re-keying without removing the lock body, solving costly downtime during key management changes.
The MA541L fits standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour ratings. It arrives with two nickel silver keys and is reversible for left or right hand installation. For expert assistance selecting the right keyway, finish, or electrified options, contact our authorized Allegion dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA541L DN 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass cylinder and plug; 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keys: Two nickel silver keys standard
- Keyways: G keyway standard on standard cylinder; A keyway standard on I.C. cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" diameter hardened steel free-turning saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
