Description

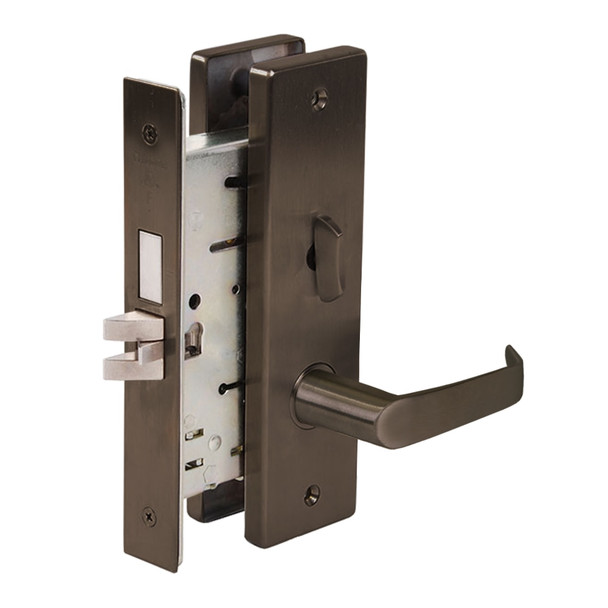

The Falcon MA541L DN 613 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines dependable security with a durable cold-formed steel case and stainless steel latch and deadbolt, designed to withstand constant daily use without compromise.
The MA541L features an interchangeable core (SFIC) for fast re-keying and works with cylinders from other manufacturers, simplifying maintenance across your facility. Right-hand handing is standard; left-hand and field reversibility are available. For expert guidance on keying options, handing selection, or electrified configurations, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" (standard) or "A" (I/C)
- Handing: Right-hand standard, left-hand optional, field reversible
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3-hour A label
- Electrified: 12 or 24 VDC available
