Description

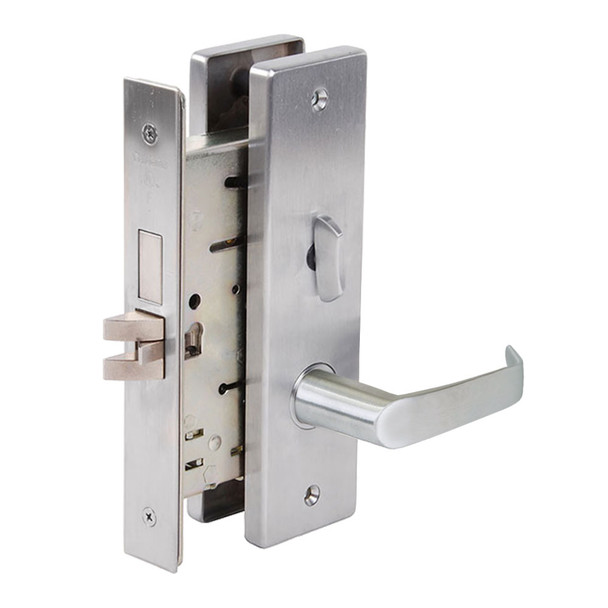

The Falcon MA541L DN 626 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This dependable lock combines security with durability, featuring a two-piece stainless steel latch bolt, anti-friction mechanics, and a 1-inch deadbolt with saw-resistant rollers. The interchangeable core design enables quick re-keying without lock removal, making it ideal for retrofit applications and ongoing facility management.
Compatible with standard door thicknesses from 1-3/8" to 2-1/2" and a 2-3/4" backset, this ANSI/BHMA Series 1000 certified lock meets rigorous commercial standards and carries a 3-hour UL label. Right-hand handing is standard; left-hand and field reversal are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, installation, and electrified options.
Specifications
- Brand: Falcon
- Model: MA541L DN 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for bevel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G-keyway standard; A-keyway on I/C cylinder
- Handing: Right-hand standard, left-hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
