Description

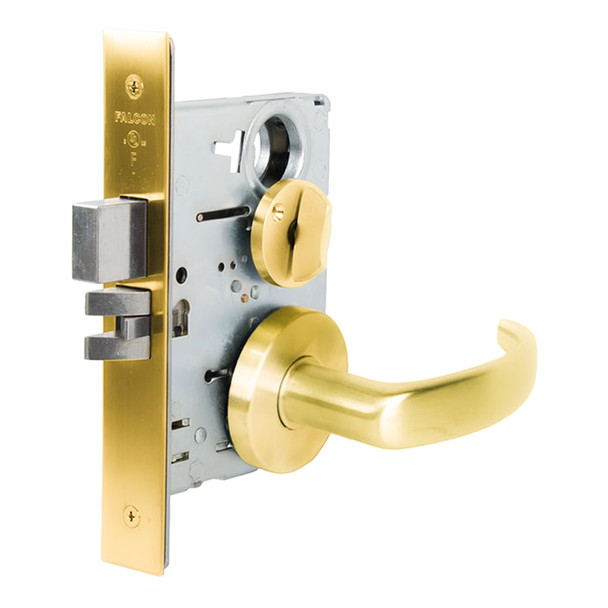

The Falcon MA541L QG 605 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built from cold-formed steel with hardened steel hubs and a mechanical anti-friction latch bolt, this lock delivers dependable security and durability for constant-use applications. The interchangeable core design enables quick re-keying without removing the lock body.
This mortise lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and fits SFIC cylinders from other manufacturers. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, installation, and compatibility. Contact us at sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541L QG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core
- Keyways: "G" standard on standard cylinder; "A" standard on I/C cylinder
- Keys Furnished: Two nickel silver keys standard
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
