Description

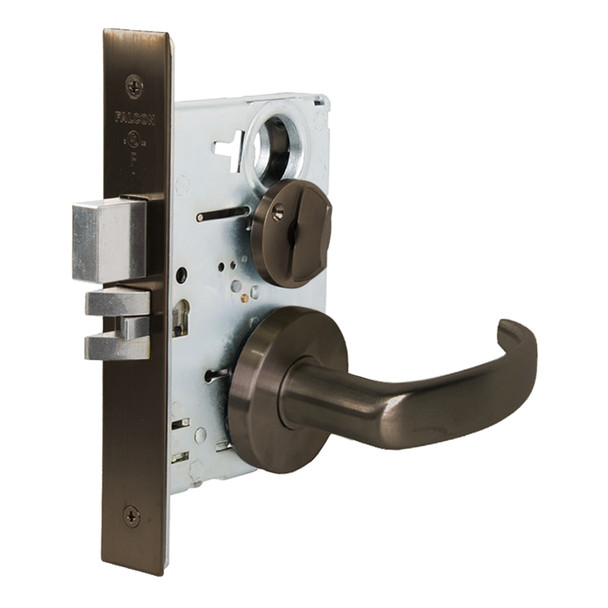

The Falcon MA541L QG 613 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built to withstand constant use without fail, this lock combines security with reliability, featuring a two-piece stainless steel latch bolt and a 1-inch deadbolt with saw-resistant rollers for maximum protection.
The MA541L accommodates doors 1-3/8" to 2-1/2" thick and includes an interchangeable core (SFIC) for quick re-keying. It's reversible in the field and available in multiple finishes and electrified options. As an authorized Falcon dealer, E.D. Locks provides expert selection and installation support at sales@edlocks.com or 1-877-207-6067 to ensure your commercial security project succeeds.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G standard on standard cylinder; A standard on I/C cylinder
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: 12 or 24 VDC options available
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
