Description

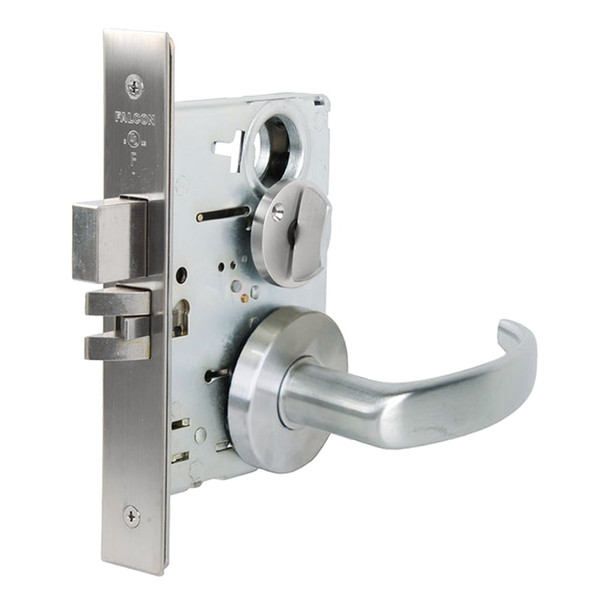

The Falcon MA541L QG 626 is a commercial mortise lock built for high-traffic office, hospital, and education environments. It delivers reliable security with an interchangeable SFIC core for quick re-keying, reversible handing, and robust construction designed to withstand constant daily use without compromising performance.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour A label standards. It's compatible with SFIC products from other manufacturers. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing options, and electrified configurations.
Specifications
- Brand: Falcon
- Model: MA541L QG 626
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinder: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard (A keyway on I.C. cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
