Description

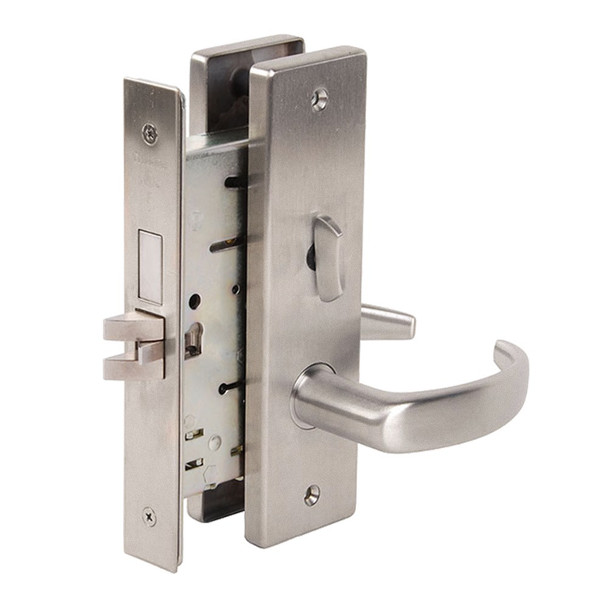

The Falcon MA541L QN 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. It combines robust security with reliable performance, featuring an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers.
This lock accommodates door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards with a 3-hour fire rating. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying options, and finish selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA541L QN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (IC cylinder)
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
