Description

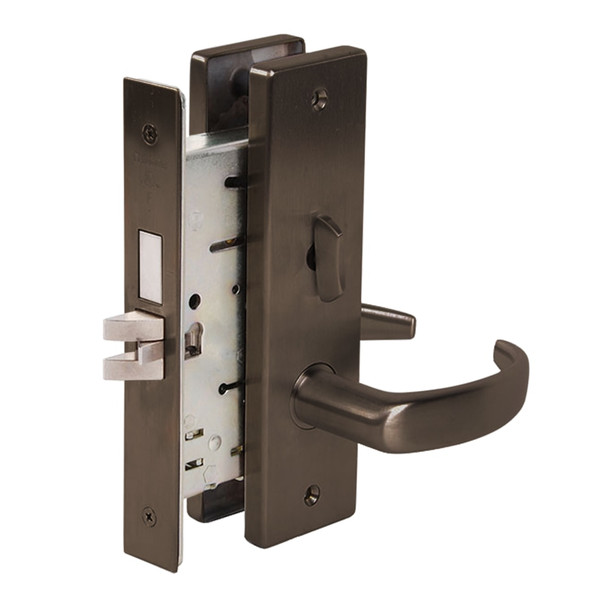

The Falcon MA541L mortise lock is a commercial-grade security solution designed for offices, hospitals, educational facilities, and high-traffic environments. Built to withstand constant use without failure, this ANSI/BHMA Series 1000 lock combines dependable performance with an interchangeable core system that simplifies re-keying and maintenance across your facility.
The MA541L accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features SFIC interchangeable core compatibility for flexible keying options. Right-hand handing is standard; left-hand is available and field-reversible. For expert guidance on installation, keying, or electrified variants, contact our authorized Falcon dealer team at sales@edlocks.com or call 1-877-207-6067.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541L QN 613
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin I/C available
- Keyways: "G" (standard cylinder) or "A" (I/C cylinder)
- Hubs: Hardened steel
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Finish: Satin Chromium (613)
- Handing: Right-hand standard, left-hand optional, field-reversible
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
