Description

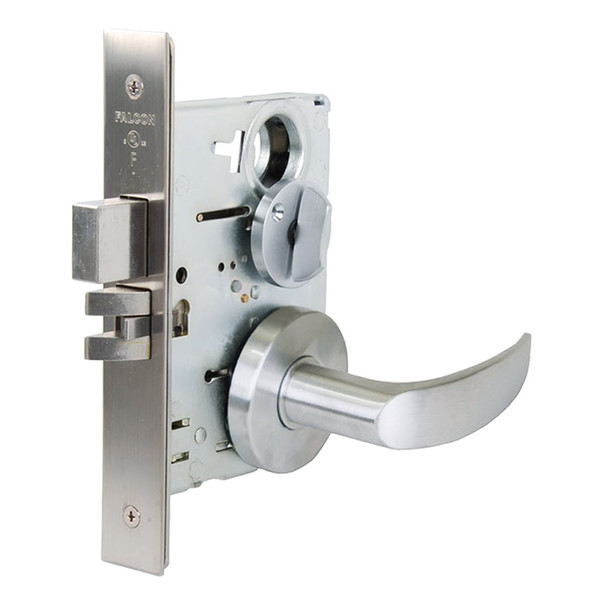

The Falcon MA541P AG 626 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This heavy-duty lock combines security with dependability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock.
The MA541P accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, finish selection, and compatibility with your facility. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541P AG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" diameter hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Finishes: Brass or stainless steel
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Handing: Right hand standard; left hand and field-reversible options
- Keying: G keyway standard; A keyway on interchangeable core; optional keyways available
