Description

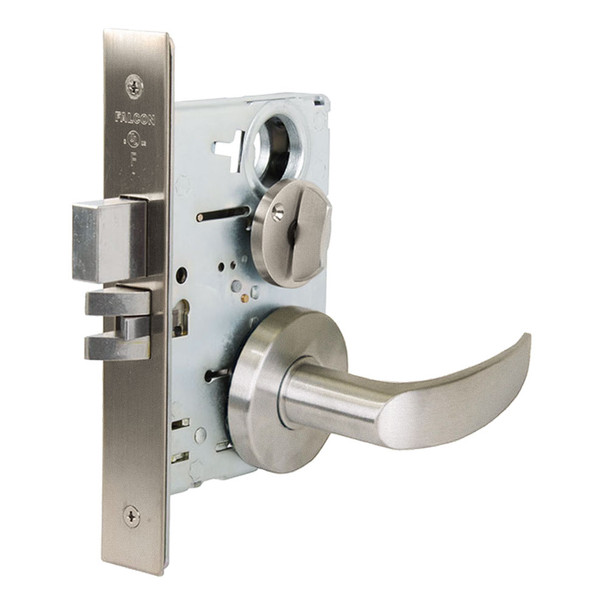

The Falcon MA541P mortise lock is a high-performance security solution designed for commercial environments including offices, hospitals, and educational facilities. This durable lock combines affordability with reliability, featuring a tough cold-formed steel case and interchangeable core technology that enables quick re-keying without removing the lock from the door.
The MA541P accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is compatible with SFIC products. Available in multiple finishes and pin configurations (5, 6, or 7-pin), it meets ANSI/BHMA Series 1000 standards and carries a UL 3-hour A label. Contact an authorized Falcon dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified: Available 12 or 24 VDC
- Includes: Two nickel silver keys
