Description

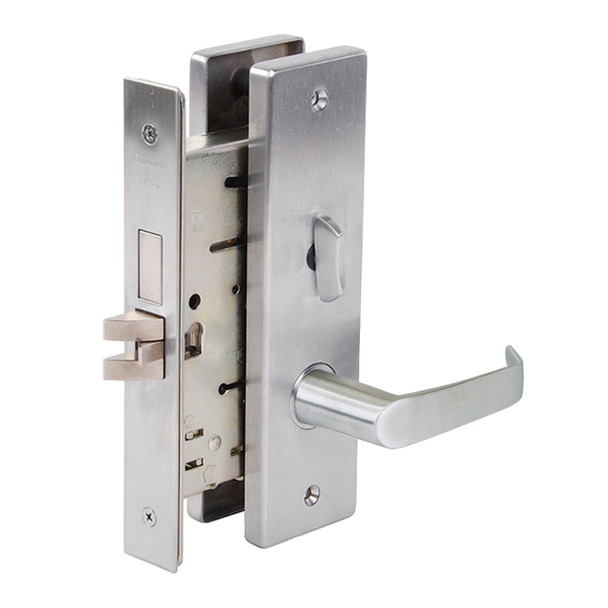

The Falcon MA541P DN 626 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This Series 1000 lock combines security with reliability, featuring a mechanical anti-friction latch bolt and a 1-inch stainless steel deadbolt with saw-resistant rollers. It handles constant daily use without failure and simplifies maintenance through an interchangeable SFIC core for quick re-keying.
The MA541P fits standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. It accepts 5, 6, or 7-pin cylinders on standard versions and includes two nickel silver keys. For expert assistance selecting the right configuration, keying options, or electrified variants, contact our authorized Falcon dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw, stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway interchangeable core
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
