Description

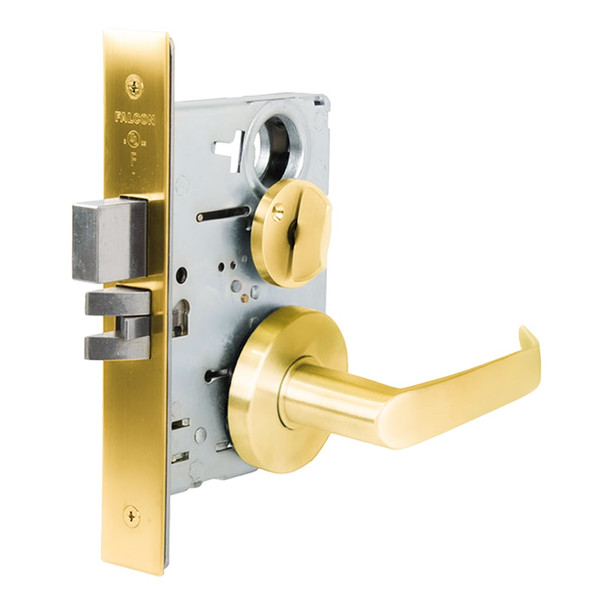

The Falcon MA541P DG 605 is a commercial mortise lock built for high-traffic office, hospital, and education environments. This dependable lock combines security with durability, featuring an interchangeable core for quick re-keying and retrofit installations. Its tough construction handles constant use without compromise.
The MA541P accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour fire ratings. Compatible with SFIC cylinders from other manufacturers, it's reversible in the field for flexible installation. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying options, handing selection, and authorized dealer support.
Specifications
- Brand: Falcon
- Model: MA541P DG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Keys: Two nickel silver keys standard
