Description

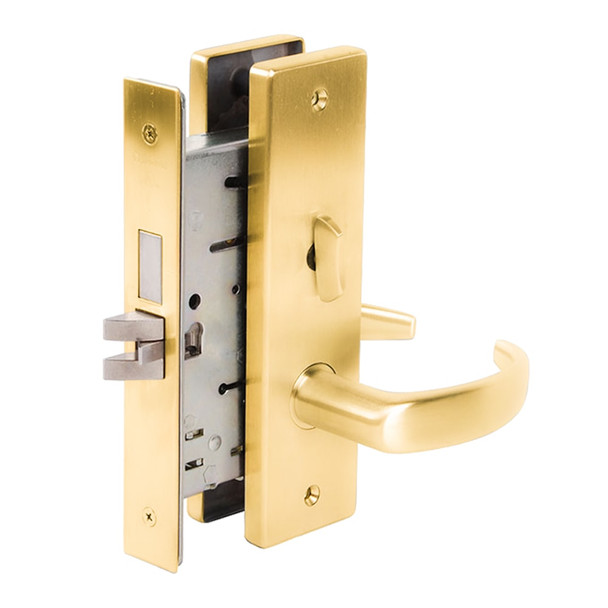

The Falcon MA541P QN 605 is a heavy-duty mortise lock engineered for commercial buildings, hospitals, educational facilities, and offices that demand reliability under constant use. Its two-piece stainless steel latch bolt, one-inch deadbolt with saw-resistant rollers, and cold-formed steel case deliver dependable security and durability for high-traffic doors.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core for quick, easy re-keying compatible with SFIC products. Right-hand handing is standard; left-hand is optional and field-reversible. As an authorized Allegion dealer, E.D. Locks provides expert support and keying assistance. Call 1-877-207-6067 or email sales@edlocks.com for installation guidance or custom options.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin IC available
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Keyways: G on standard cylinder, A on IC cylinder
- Handing: Right-hand standard, left-hand optional, field-reversible
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3-hour A label
