Description

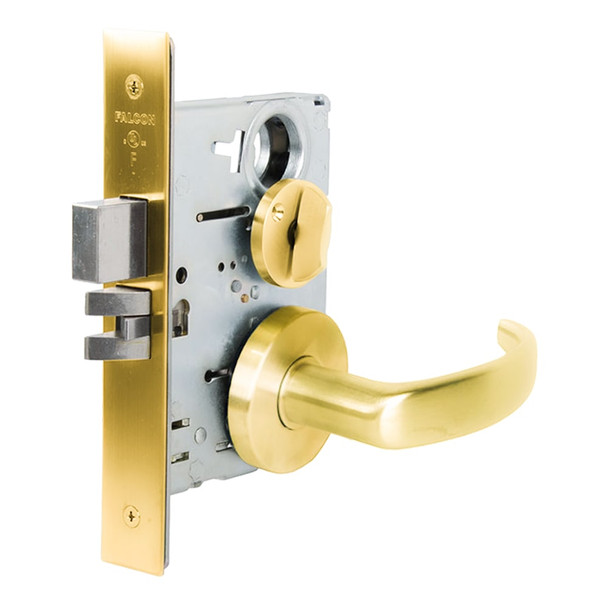

The Falcon MA541P QG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a two-piece stainless steel latch bolt and a 1-inch throw deadbolt with saw-resistant rollers. The interchangeable core design enables quick field re-keying without lock removal.
Fits standard door thickness of 1-3/8 inches to 2-1/2 inches with a 2-3/4-inch backset. Compatible with SFIC products and available in 12 or 24 VDC electrified functions. Right-hand standard; left-hand and reversible field options available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation and keying. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Door Thickness: 1-3/8 inches to 2-1/2 inches
- Backset: 2-3/4 inches
- Case: Cold formed steel, zinc dichromate plated, 0.090 inches thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 inches x 8 inches, brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Handing: Right-hand standard, left-hand optional, reversible in field
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified Functions: 12 or 24 VDC available
