Description

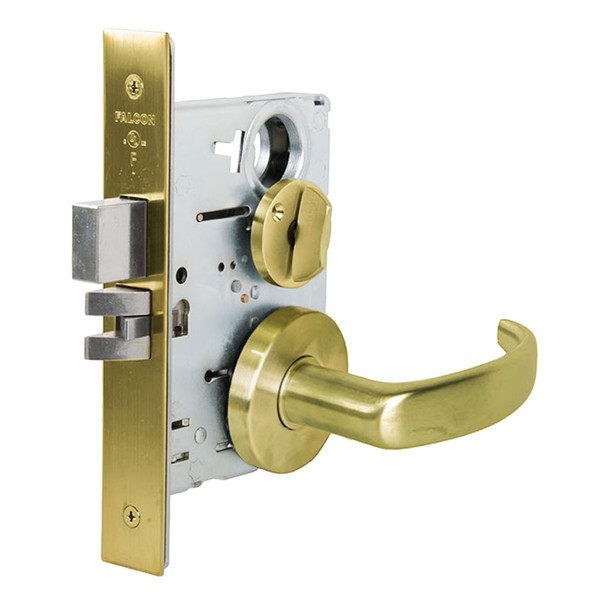

The Falcon MA541P QG 606 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This dependable lock features a two-piece stainless steel latch bolt with mechanical anti-friction design, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock body.
The MA Series accommodates door thickness from 1-3/8" to 2-1/2" with a standard 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Compatible with SFIC products from other manufacturers, this lock is reversible in the field and available in electrified 12 or 24 VDC functions. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert assistance with specification confirmation, keying options, and authorized dealer support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available (6 or 7-pin for interchangeable core)
- Keyway: G keyway standard (A keyway standard on I.C. cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard, left hand optional, reversible in field
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
