Description

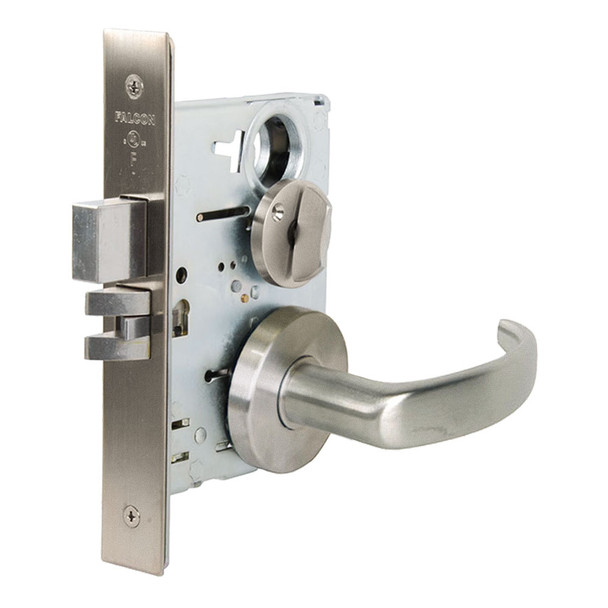

The Falcon MA541P is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock delivers dependable security and withstands constant use without failure, featuring a mechanical anti-friction latch bolt and saw-resistant dead bolt with hardened steel rollers for superior protection.
The MA541P accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core (SFIC-compatible) for quick re-keying. UL-listed for 3-hour fire rating and available in electrified 12/24 VDC models. Contact our authorized Falcon dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, finishes, and project specifications.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541P QG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin I/C
- Keyway: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: 12 or 24 VDC available
