Description

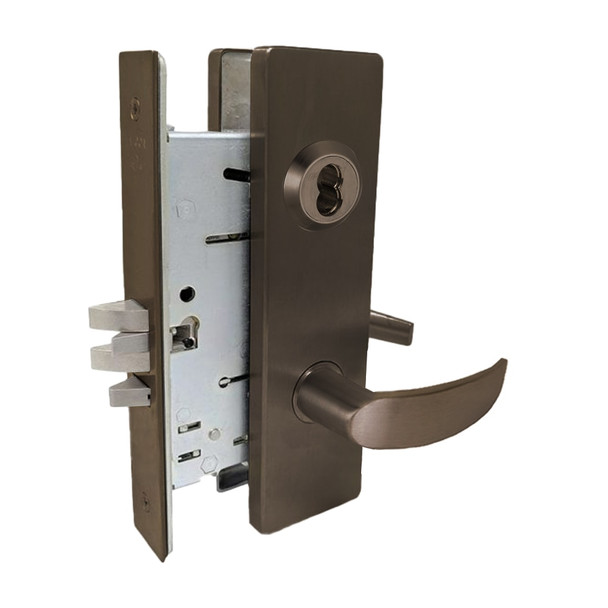

The Falcon MA561B mortise lock delivers high-performance security for commercial applications including offices, hospitals, and educational facilities. Engineered for durability, this Series 1000 lock withstands constant use without fail and features an interchangeable core for quick re-keying and SFIC compatibility with other manufacturers' products.
The MA561B accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is reversible in the field for flexible installation. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and specifications. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and custom configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561B AN 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder); "A" standard (I.C. cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA Certification: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
