Description

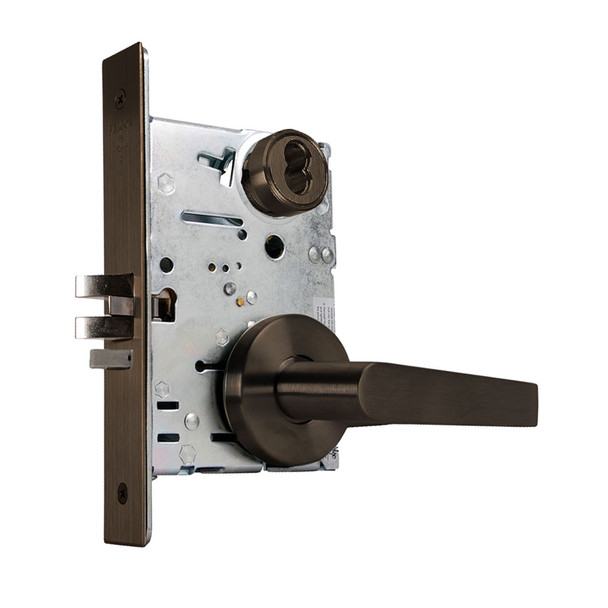

The Falcon MA561B DG 613 is a commercial-grade mortise lock engineered for offices, hospitals, schools, and institutional facilities requiring reliable security and durability. Built to withstand heavy daily use, it combines a mechanical anti-friction latch with a saw-resistant roller deadbolt, delivering dependable performance at an affordable price point.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and features an interchangeable core (SFIC-compatible) for quick re-keying without removing the lock body. The MA Series meets ANSI/BHMA Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keying options, and electrified configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561B DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible options available
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: 12 or 24 VDC available
- Standard: ANSI/BHMA 156.13 Series 1000
- UL Rating: 3-hour A label
- Finish: DG (Dark Oxidized Satin Bronze)
