Description

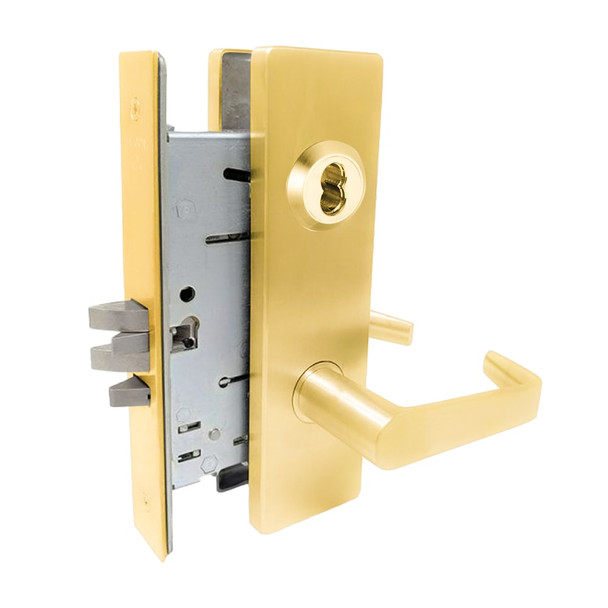

The Falcon MA561B DN 605 is a commercial mortise lock built for offices, hospitals, and educational facilities that demand reliable security and durability. Its interchangeable core design enables quick re-keying without removing the lock, and the two-piece stainless steel latch with anti-friction bolt withstands constant daily use in high-traffic environments.
Compatible with SFIC products and reversible for field handing adjustment, this lock fits door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. Backed by Allegion and ANSI/BHMA Series 1000 certification, it delivers commercial-grade security. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G standard (standard cylinder); A standard (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard; left hand and field reversible
- Electrified: Optional 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Includes: Two nickel silver keys
