Description

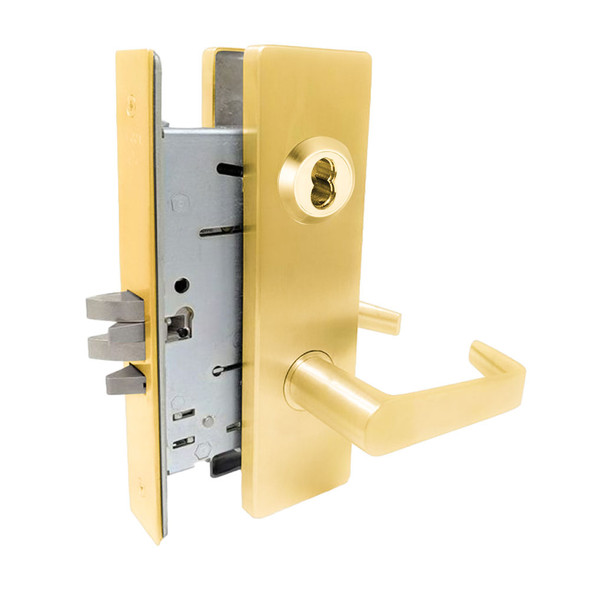

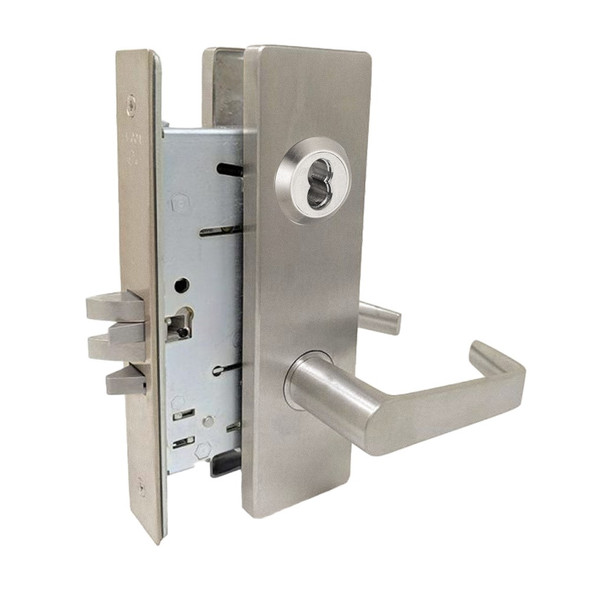

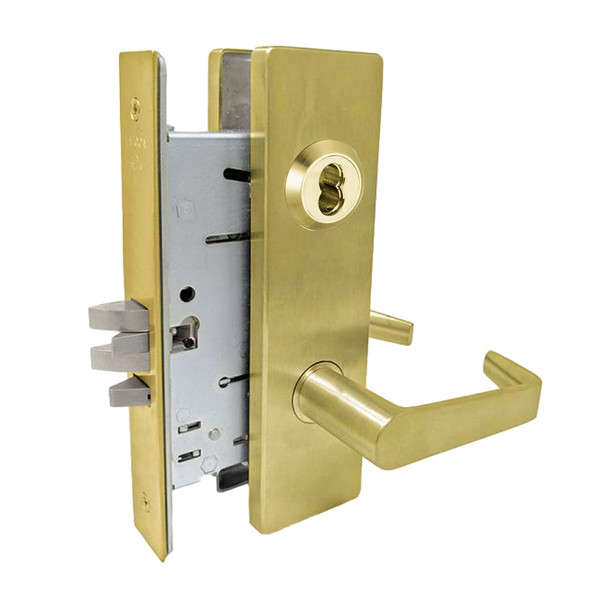

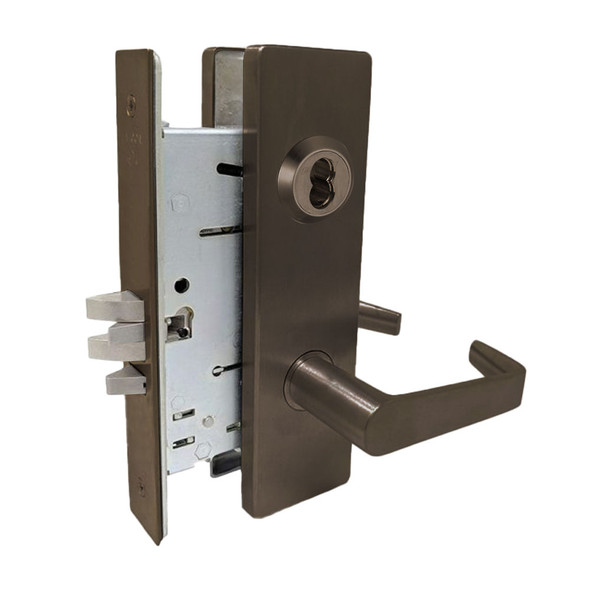

The Falcon MA561B DN 606 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and educational facilities. Its interchangeable SFIC core enables quick field re-keying without removing the lock, while a two-piece stainless steel latch and saw-resistant roller deadbolt deliver dependable security through constant daily use.
This lock fits standard 1-3/8" to 2-1/2" door thickness and reverses easily in the field for either hand. Contact our authorized Falcon dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert guidance on your commercial project specification.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G (standard cylinder), A (I/C cylinder)
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
