Description

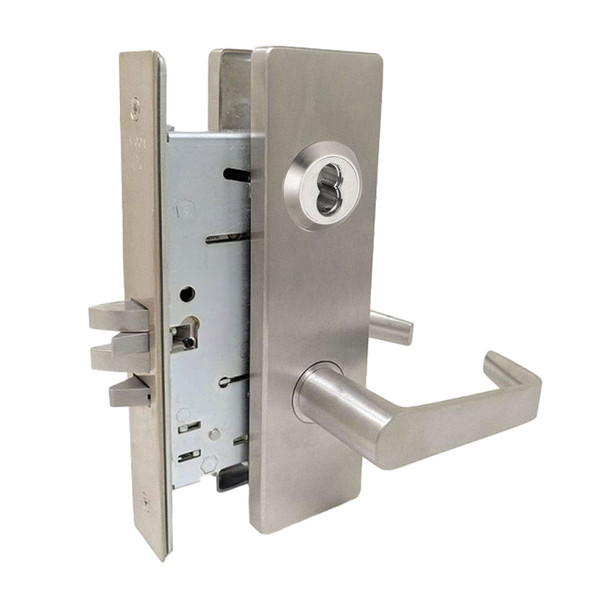

The Falcon MA561B DN 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This interchangeable core lock combines security with easy re-keying, reducing downtime and maintenance costs while standing up to constant use without compromise.
The MA561B DN 630 accepts SFIC cores from other manufacturers, making it ideal for retrofit projects and multi-facility operations. Installation fits standard 1-3/8" to 2-1/2" door thickness with 2-3/4" backset. As an authorized Allegion dealer, E.D. Locks offers expert guidance on keying options, finishes, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for specification details and availability.
Specifications
- Brand: Falcon (by Allegion)
- Model: MA561B DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable
- Handing: Right hand standard, left hand and field reversible
- Electrified: Available in 12 or 24 VDC
- Compliance: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label, ANSI A115.1
